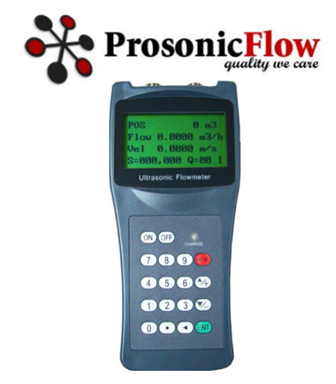

Handheld Ultrasonic Flow Meter G5500
The Handheld Ultrasonic Flow Meter ProsonicFlow G5500 is an ideal tool for service work and quick control measurements. Its clamp-on flow transducers are simply mounted onto the pipe from the outside and are thus quickly installed, without process interruption and without production stop. The measurement is pressure independent and can take place on pipes of almost any materials and on almost any liquid .The measurement is possible on pipes with diameter between 15 mm and 6000 mm and at temperatures ranging from 0°C to 100°C (up to 150°C). ProsonicFlow G5500 is thus highly flexible and can be used on the most various applications on totally different measuring points. Two pairs of transducers usually are enough to cover the standard industrial applications. A quick flow control with a good precision, even under difficult measuring conditions.
Specification
- Accuracy : ± 1% (± 0.5% with on-site calibration)
- Liquid Types : Virtually all clean liquids and liquids with minor solids
- Liquid Temp : 0˚C - 70˚C (150˚C option)
- Pipe Size : 1/2" - 240" (DN 15 mm – DN 6,000 mm)
- Pipe Material : All metals, most plastics, concrete, lined pipe
- Case Size : 200mm x 92mm x 32mm
- Batteries : 3 AAA Ni-H built-in batteries
- Weight : 1.2 lbs. (538g) with batteries
