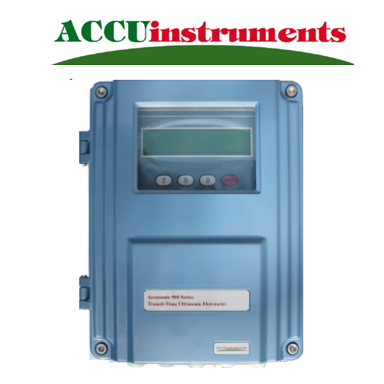

Wall-Mount Ultrasonic Flow Meter 500W
The Wall-Mount Ultrasonic Flow Meter Accusonic 500W is an ideal tool for service work and quick control measurements. Its clamp-on flow transducers are simply mounted onto the pipe from the outside and are thus quickly installed, without process interruption and without production stop. The measurement is pressure independent and can take place on pipes of almost any materials and on almost any liquid. The measurement is possible on pipes with diameter between 25 mm to 6000 mm and at temperatures ranging from 0°C to 100 °C (150 °C option). Accusonic 500W is thus highly flexible and can be used on the most various applications on totally different measuring points. Two pairs of transducers usually are enough to cover the standard industrial applications. It allows for a quick flow control with a good precision, even under difficult measuring conditions. The ACCUSONIC 500W ultrasonic thermal energy meter provides abundant capabilities for accurate thermal energy measurement of a liquid-based thermal energy production / transferring system.
Specification
- Accuracy : Better than ±1%
- Liquid Types : Virtually all commonly used liquids (full pipe)
- Liquid Temp : 0˚C - 100˚C ( 150 ˚C option )
- Pipe Size : 1" - 240"
- Pipe Material : All metals, most plastics, fiber glass, etc.
- Weight : Approx. 2.5 kg
Benefit
- All components of system 500W flowmeters, temperature sensors and net heat computing unit are manufactured
- High accuracy. Normally, ±1%. When on-site calibration available, ±0.5%.
- Wide flow range 0.03 to 105ft/s. - Wide pipe size range (from 1" to 240").
- Noninvasive. No pipe disturbance. No moving parts, no pressure drop.
- Easy and economical installation. No cutting pipe, non drilling hole.
- Suitable for all commonly used pipe materials
- Easy to use and set up. Self-explanatory menu programming
- Energy units ,Velocity, volumetric and totalized flow
- GPRS / GSM networking capability with certain model
- Temperature sensors used are matched pair and accurate
- Wide choice of user defined flow units for the flowmeter
- Flowmeters display instantaneous and totalized flow
- User defined (Factory set) units for the Net Heat computing units Kcal / GJ / BTU
